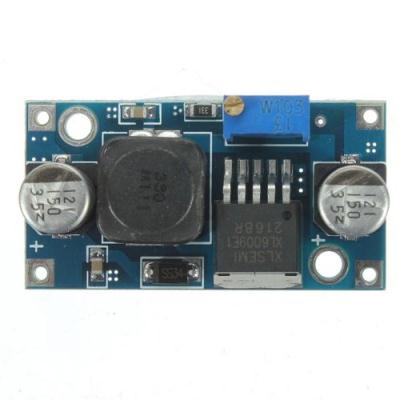

XL6009 adjustable voltage regulator module

214,900 تومان

تماس بگیرید

  • <p style="text-align:center"><span style="font-size:24px"><span style="font-family:sakkal majalla"><span style="color:#33cc00">تحویل کالا </span></span></span></p>

شرح مختصر

کاربردها: تغذیه مدارات الکترونیکی جریان بالا

XL6009 adj step up voltage regulator module

Max Output Current: 3A

Maximum power: 10W

Size: 4.1 x 2.1 x 1.3cm

مشخصات فنی

Adjustable XL6009 Step Up Boost Voltage Power Supply Module Converter Regulator

Feature:
Solidly-structured
Built-4A efficient MOSFET switch- so that the efficiency up to 94%
Ultra-high switching frequency- you can use a small-capacity filter capacitors that can achieve very good results

Specification:
Input voltage: 3.5V ~ 32V
Output voltage: 5V ~ 35V
Output current: rated current is 2.5A- maximum 3A (Additional heatsink is required)
Load regulation: ±0.5%
Voltage regulation: ±0.5%
Work Temperature: -40°C ~ +125°C
Maximum power: 10W
Size: 4.1 x 2.1 x 1.3cm

Note:
This cant be used to step down voltage
